15% performance-boost and 40% less memory-usage using GraalVM

84 replies

geektrader

Customer, bbp_participant, community, 524 replies.

Visit profile

5 years ago #257329

Hi 🙂

I just wanted to share my “new” find. As always, I am exploring options about how to increase the speed of SQX for my daily workflow by tuning parameters, garbage collectors, etc. Lately, I´ve learned about GraalVM, which is a relatively new JIT-compiler that has maximum performance as its goal and has been shown sometimes to be up to 30x faster than if executing code in the standard JRE / OpenJDK runtimes that SQX is using right now. Over here is an excellent video about how it works, why it has been made and with some performance tests: https://www.youtube.com/watch?v=GinNxS3OSi0 For example: Twitter is running all their Java stuff on GraalVM instead of JRE / OpenJDK for a while now and have noticed a considerable drop in CPU and RAM usage.

And now the great part: using it with SQX is as easy as downloading the latest Windows binary from here https://github.com/graalvm/graalvm-ce-builds/releases

Simply unpack the ZIP file into the J64 of SQX (previously delete or rename the folder) and just continue working with SQX as you always did. Personally here is what I have experienced since replacing it and of course, using the same settings in SQX as before:

– about a 15% performance increase in strategy generation speed

– approximately a 40% drop in memory consumption (which is AMAZING given that I can now work with less RAM)

– no errors or crashes of SQX just works the same as with JRE / OpenJDK

As this is open-source, I would highly recommend that SQX is being shipped with GraalVM in its default configuration, as this seems to be amazing!  There also is an Enterprise Edition available that seems to be even faster, but it´s 193 Euro/year and I haven´t tested it yet.

Have fun crunching strategies 😉


🚀 Unlock Your Edge in Automated Forex Strategy Development 🚀

Historical Forex Data Starting From 1987, 28 Pairs, M1, 99% Error-Free, Lifetime Free Updates

1

cloudsourcer

Subscriber, bbp_participant, sq-ultimate, 3 replies.

Visit profile

4 years ago #267814

Hi there, I would like to try this performance upgrade, could I please check if I need to delete the contents of the J64 folder and replace it will the unzipped files?

Also, is Enterprise Edition 20 stable or stick to 19? Not sure if I need Java 8 or 11 version, I am running Win 10 Pro.

thanks

Attachments:
You must be logged in to view attached files.

0

hankeys

Customer, bbp_participant, community, sq-ultimate, 485 replies.

Visit profile

4 years ago #267817

java 11, version 20 whatever – yes, you will delete or better rename the original “j64” folder and unzipt the content from graal zip inside it and restart SQX

You want to be a profitable algotrader? We started using StrateQuant software in early 2014. For now we have a very big knowhow for building EAs for every possible types of markets. We share this knowhow, apps, tools and also all final strategies with real traders. If you want to join us, fill in the FORM.

0

Waid

Subscriber, bbp_participant, customer, community, sq-ultimate, 27 replies.

Visit profile

4 years ago #268938

Does it shipped to B130?

I just see this post and now open up  SQX’s j64 folder’s readme file. It state that it is openJDK.

Does GraalVM problematical or something else, so that after several  month of people testing here conclude that it is not suitable to ship to new version of SQX?

0

hankeys

Customer, bbp_participant, community, sq-ultimate, 485 replies.

Visit profile

4 years ago #268939

i think it will not be shipped with SQX, because of licensing…so you need to try it for yourself and see what difference you could achieve on your PC specs…you can see our benchmark we have made

You want to be a profitable algotrader? We started using StrateQuant software in early 2014. For now we have a very big knowhow for building EAs for every possible types of markets. We share this knowhow, apps, tools and also all final strategies with real traders. If you want to join us, fill in the FORM.

0

Jim Lin

Subscriber, bbp_participant, customer, community, 10 replies.

Visit profile

4 years ago #269997

Hi, Guys

Just now, I compare to SQX 131 with the default java and the one with graaivm java, no much speed up though….

Wondering if SQX 131 has java improved already ?

0

neilrickaby

Customer, bbp_participant, community, 27 replies.

Visit profile

4 years ago #270706

Tried this using: graalvm-ee-java11-21.1.0 on SQX Build 131.659, with no luck! Any help would be appreciated. Error was persistent, I tried many restarts!

0

Tamas

Customer, bbp_participant, community, sq-ultimate, 73 replies.

Visit profile

4 years ago #270709

Hello,

it will work after deleting the files below from j64 folder

\j64\languages\nfi\builder\svm-none.jar;
\j64\languages\nfi\truffle-nfi-none.jar;



SQ team, Tamas

0

Conmariin

Subscriber, bbp_participant, community, customer, 62 replies.

Visit profile

4 years ago #270722

For all who want to use graalvm: Take the 21.1 java version 11 not version 16.

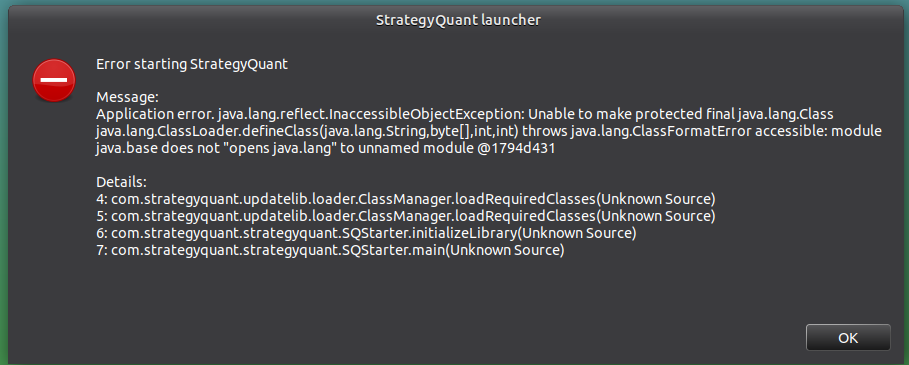

This produces that error (in my case on Linux):

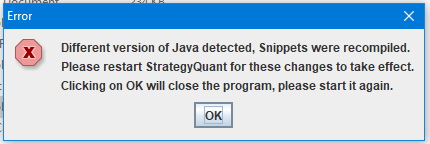

If you take version 11, than it works fine after a restart of SQ. Before this you should delete

\j64\languages\nfi\builder\svm-none.jar;
\j64\languages\nfi\truffle-nfi-none.jar;

as Tamas already said.

Automatisches Handeln mit Expert Advisor
https://www.rabenesche.de

Active also in:
https://forums.babypips.com/u/ravenash

0

neilrickaby

Customer, bbp_participant, community, 27 replies.

Visit profile

4 years ago #270710

Tried this using: graalvm-ee-java11-21.1.0 on SQX Build 131.659, with no luck! Any help would be appreciated. Error was persistent, I tried many restarts!

I actually managed to get this working, thanks to info on the Discord server, using the package: graalvm-ee-java11-windows-amd64-20.0.0. But after testing I didn’t see any noticeable performance increase.

0

hankeys

Customer, bbp_participant, community, sq-ultimate, 485 replies.

Visit profile

4 years ago #270743

strange, because every user i know have performance boos with graal

You want to be a profitable algotrader? We started using StrateQuant software in early 2014. For now we have a very big knowhow for building EAs for every possible types of markets. We share this knowhow, apps, tools and also all final strategies with real traders. If you want to join us, fill in the FORM.

0

Michael

Customer, bbp_participant, sq-ultimate, 2 replies.

Visit profile

4 years ago #270800

I ran some tests this morning and observed interesting results.  I tested the original configuration of Build 131 against the enterprise edition Graalvm version 20.3.2 and 21.1.0 (both using v11).

The first thing I did was to compare benchmarks and took the best out of three tests for each.

Then I did 500 trend strategy test using all three for both the random and genetic modes.

To sum it up, the original configuration did better than using either 20.3.2 or 21.1.0 on the benchmark tests and there wasn’t any real difference for the other tests…

I’ve attached a few pictures to show direct comparisons.

Attachments:
You must be logged in to view attached files.

0

Karish

Customer, bbp_participant, community, sq-ultimate, 443 replies.

Visit profile

4 years ago #270802

Michael

Customer, bbp_participant, sq-ultimate, 2 replies.

Visit profile

4 years ago #270813

Thanks Karish for sharing the spreadsheet and link.

I just updated the sheet with my tests and now I see a difference, and what a difference it actually is.  For me, the best improvement was 43% – going from 454.2k strategies per hour to 651.7k!!!!!

0

YuL

Subscriber, bbp_participant, customer, community, 7 replies.

Visit profile

4 years ago #270929

I wonder if there is a difference in performance between Linux and Windows versions due to operating systems. Did anyone try to compare them?

Linux does not have a problem using more than 64 cores in one application as on Windows, so it may be a better alternative overall.

0

tarrioin

Subscriber, bbp_participant, customer, community, sq-ultimate, 8 replies.

Visit profile

3 years ago #271403

3900x

No GM 255280 s/h

with GM 285548 s/h

0
